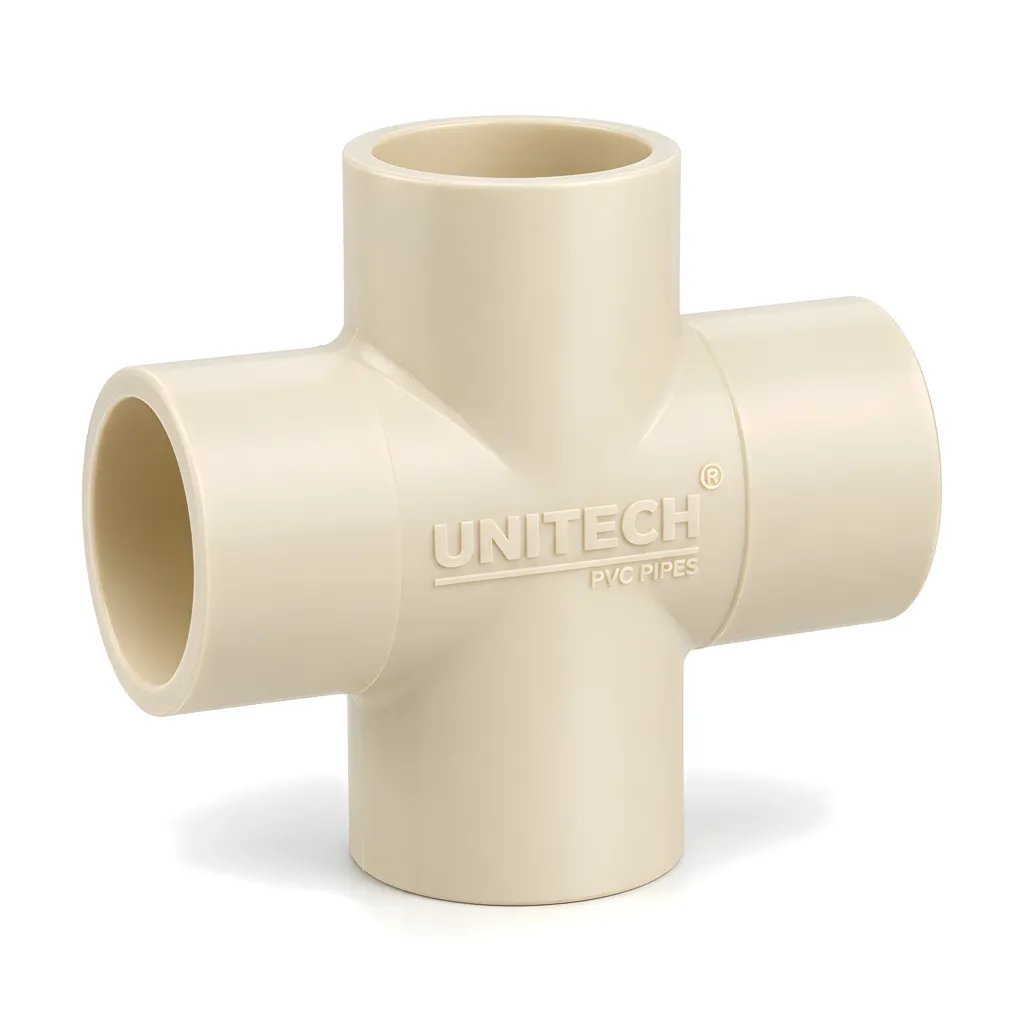

CPVC Cross Tee

UNITECH CPVC Cross Tee – for Hot & Cold Water Supply. Available from 20 mm to 32 mm, ISI marked to IS 15778:2007.

Sizes: 20 – 32 mm
MRP: ₹46 – ₹182
HSN code: 3917

Salient features

Free from Toxicity, Odours & Tastes
Easy To Install
Lowest Bacterial Growth
Little or No Maintenance Required
Optimum Flow Rates
Lead Free

View price list Download PDF Share

Need help choosing the right size?

Talk to our sales team in Barnala.

Call WhatsApp

Technical specifications

Standard: IS 15778:2007
Material: Chlorinated polyvinyl chloride (CPVC)
Pipe standards: IS 15778:2007 (SDR 11, SDR 13.5); ASTM F 441 (SCH 40, SCH 80)
Fitting standards: ASTM D 2846 (SDR 11, ½″ – 2″); ASTM F 438 (SCH 40, 2½″ – 4″); ASTM F 439 (SCH 80, 2½″ – 8″)
Cell class (ASTM D 1784): 23447
Specific gravity (ASTM D 792): 1.55
Tensile strength (ASTM D 638): 55 N/mm² (8,000 psi)
Heat distortion temperature (ASTM D 648): 103 °C
Flammability (UL 94): V-0, 5VB, 5VA
Limiting oxygen index (ASTM D 2863): 60%
HSN code: 3917

Sizes, packing & MRP

3 sizes available · HSN 3917

Sizes and prices for CPVC Cross Tee
Size (Inch)	Size (mm)	Std Pkg (Pcs/Bag)	Bag Qty	MRP (₹/Pc)
3/4"	20	50x2	100	₹46
1"	25	25x2	50	₹78
1-1/4"	32	—	—	₹182

No size matches your search.

MRP in ₹ per piece as per the current UNITECH price list. Prices are subject to change without notice.

Typical use · illustration

Where it's used

For Hot & Cold Water Supply

UNITECH CPVC pipes and fittings for hot and cold water supply, ISI marked to IS 15778:2007. Pipes in SDR 11, SDR 13.5, SCH 40 and SCH 80 from 15 mm to 200 mm, with a full range of plain and brass-threaded fittings, valves and solvent cement.
