SWR Drainage Pipes & Fittings

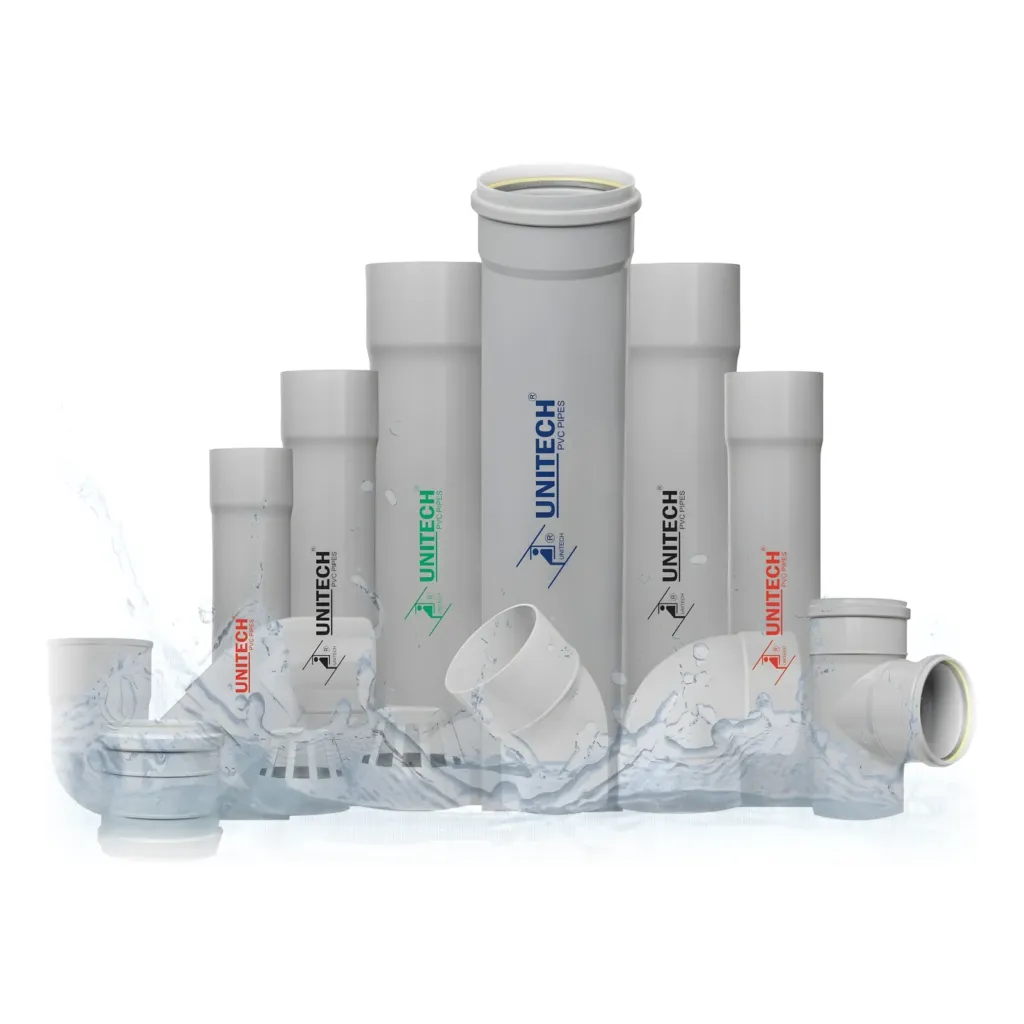

SWR Ringfit Pipe
UNITECH SWR Ringfit Pipe – sWR Pipes & Fittings (Ring Fit & Sol Fit). Available from 75 mm to 160 mm, ISI marked to IS 13592:2013.
- Sizes
- 75 – 160 mm
- MRP
- ₹460 – ₹4,404
Salient features
- Superior Quality Standards & Wide Range
- Light in Weight, Thus Reducing Transportation
- Quick and Productive Removal of Waste Without Leakages
- Free From Chemical & Corrosion Resistance
- Extra Stronger & Longer Lasting
- For Domestic & Commercial Purposes
Technical specifications
- Standard
- IS 13592:2013
- Fitting standard
- IS 14735
- Rubber rings
- IS 5382
Sizes, packing & MRP
20 sizes available
| Item Size (In Inches) | Size (In MM) | Type | Length | MRP (₹/Pc) |
|---|---|---|---|---|
| 2-1/2" | 75 | Type A | 6 m | ₹920 |
| 2-1/2" | 75 | Type A | 3 m | ₹460 |
| 2-1/2" | 75 | Type B | 6 m | ₹1,185 |
| 2-1/2" | 75 | Type B | 3 m | ₹593 |
| 3" | 90 | Type A | 6 m | ₹1,210 |
| 3" | 90 | Type A | 3 m | ₹605 |
| 3" | 90 | Type B | 6 m | ₹1,790 |
| 3" | 90 | Type B | 3 m | ₹895 |
| 4" | 110 | Type A | 6 m | ₹1,694 |
| 4" | 110 | Type A | 3 m | ₹847 |
| 4" | 110 | Type B | 6 m | ₹2,468 |
| 4" | 110 | Type B | 3 m | ₹1,234 |
| 5" | 140 | Type A | 6 m | ₹2,662 |
| 5" | 140 | Type A | 3 m | ₹1,331 |
| 5" | 140 | Type B | 6 m | ₹3,388 |
| 5" | 140 | Type B | 3 m | ₹1,694 |
| 6" | 160 | Type A | 6 m | ₹3,630 |
| 6" | 160 | Type A | 3 m | ₹1,815 |
| 6" | 160 | Type B | 6 m | ₹4,404 |
| 6" | 160 | Type B | 3 m | ₹2,212 |
No size matches your search.
MRP in ₹ per piece as per the current UNITECH price list. Prices are subject to change without notice.
Technical data
Dimensions (IS 13592)
| Size (inch) | Size (mm) | Mean outside diameter (mm) | Wall thickness Type A (mm) | Wall thickness Type B (mm) |
|---|---|---|---|---|
| 2-1/2" | 75 | 75.0 – 75.3 | 1.8 – 2.2 | 3.2 – 3.8 |
| 3" | 90 | 90.0 – 90.3 | 1.9 – 2.3 | 3.2 – 3.8 |
| 4" | 110 | 110.0 – 110.4 | 2.2 – 2.7 | 3.2 – 3.8 |
| 5" | 140 | 140.0 – 140.5 | 2.9 – 3.4 | 3.6 – 4.2 |
| 6" | 160 | 160.0 – 160.5 | 3.2 – 3.8 | 4.0 – 4.6 |
Where it's used
SWR Pipes & Fittings (Ring Fit & Sol Fit)
Soil, waste and rain-water (SWR) drainage pipes and fittings to IS 13592:2013, available in Ringfit and Solfit jointing, Type A and Type B, from 75 mm to 160 mm.
